Loose tube stranded air-blown micro cable (GCYFTY) Wasin Fujikura
Kev piav qhia

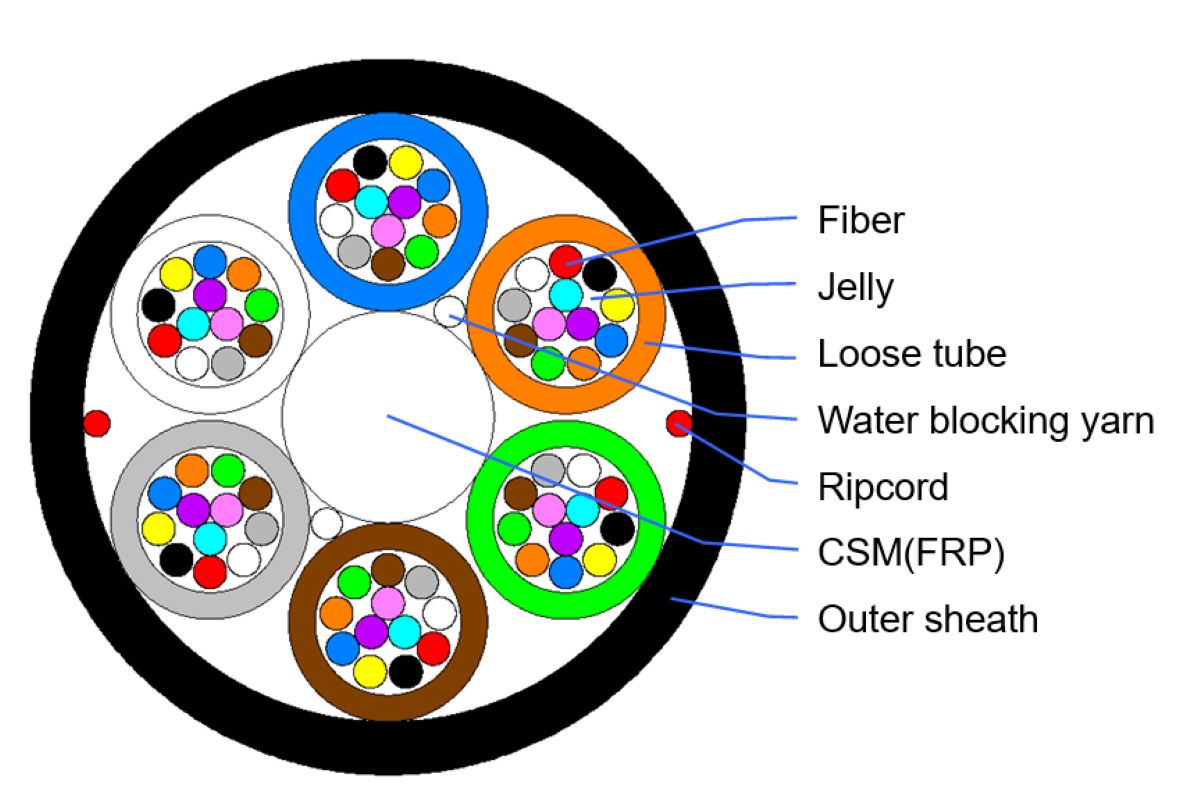

Cov fibers, yog positioned nyob rau hauv ib tug xoob raj ua los ntawm ib tug siab modulus yas ntim nrog jelly. Ib tug fiber reinforced yas qws (FRP), coated nrog polyethylene yog tias tsim nyog nyob rau hauv nruab nrab ntawm cov tub ntxhais yog ib tug muaj zog tswv cuab. Tubers (thiab fillers) raug tso tseg nyob ib ncig ntawm lub zog cov tswv cuab los ua ib qho kev cog lus thiab lub voj voog cable. Ib txheej ntawm nyias polyethylene sheath yog extruded nyob ib ncig ntawm lub cable core los ua ib tug cable.
Feature
Me me, lub teeb yuag, siab fiber ntau
Haum rau cua tshuab cua tshuab
Kev ua haujlwm kub zoo heev rau qhov sib txawv kub ib puag ncig daim ntawv thov.
Kev ua tau zoo
Daim ntawv thov: ntev ntev thiab tsim kev sib txuas lus network;
Installation: kav dej;
Ua haujlwm kub: -40 ℃ + 70 ℃;
Bending vojvoog: zoo li qub 10 * D / Dynamic20 * D.
Structure thiab technical specifications
| Fiber ntau Suav | Nominal Txoj kab uas hla (mm) | Nominal Qhov hnyav (kg/km) | Tso cai Tensile (N) | Yam tsawg kawg Bending Radius (mm) | Tso cai Crusl Resistant (N / 10cm) | ||
| Lub sij hawm luv luv | Lub sij hawm ntev | Dynamic | Static | ||||
| 2 x72 | 5.4 | 26 | 0.3g ua | 1G | 20D | 10D | 500 |
| 96 | 6.3 | 38 | 0.3g ua | 1G | 20D | 10D | 500 |
| 144 | 8.0 ib | 37 | 0.3g ua | 1G | 20D | 10D | 500 |
| 192 | 10.0 | 60 | 0.3g ua | 1G | 20D | 10D | 500 |
| 216 | 10.0 | 60 | 0.3g ua | 1G | 20D | 10D | 500 |
| 288 | 10.6 | 78 | 0.3g ua | 1G | 20D | 10D | 500 |
Cov qauv tshwj xeeb cables tuaj yeem tsim thiab tsim los ntawm cov neeg siv khoom thov
